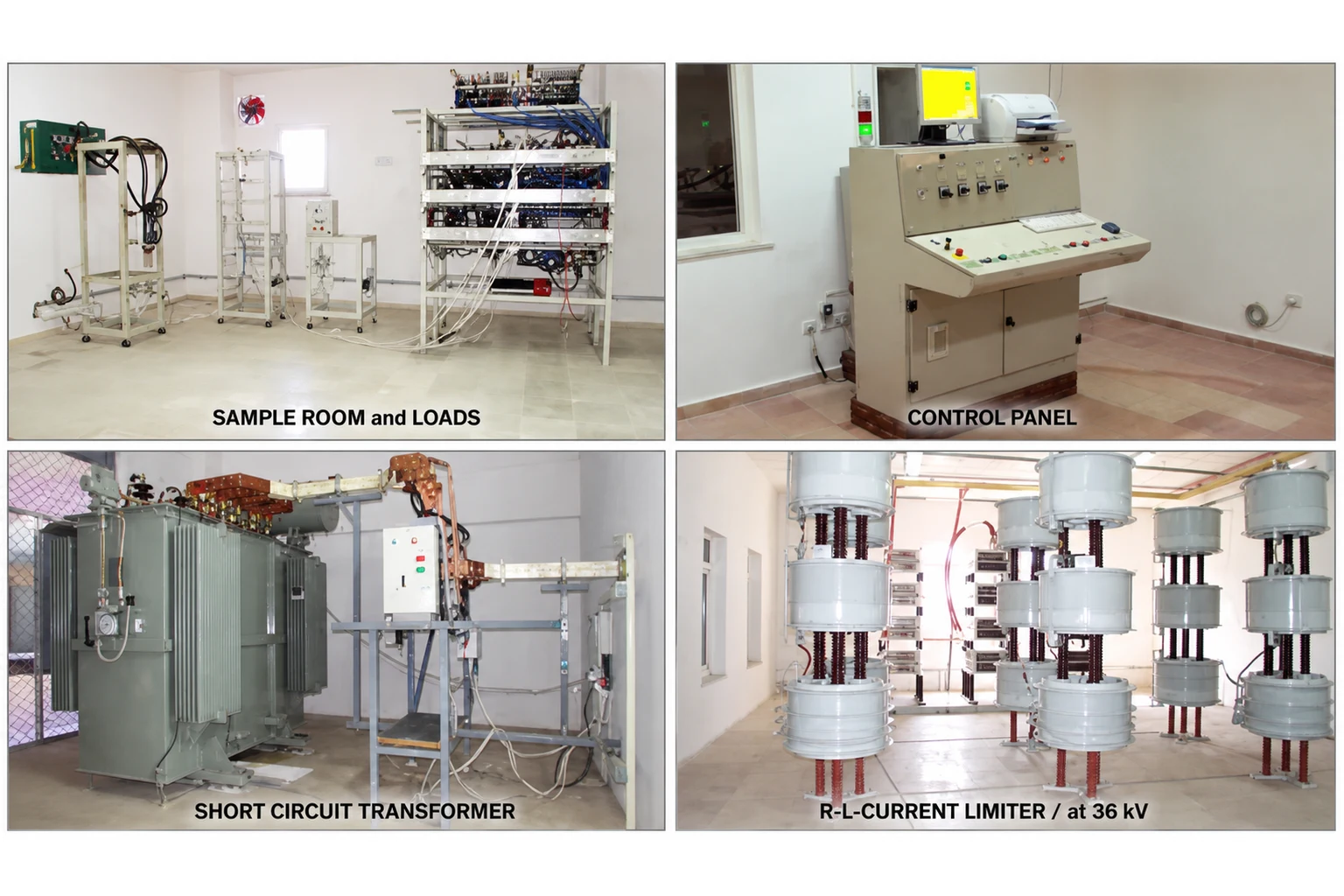

Hilkar designs and delivers turn-key short-circuit test laboratories for type testing of low and medium voltage switchgear and electrical panels. These test systems are designed for testing applications up to 1000 V and 120 kA, providing complete solutions for high-current performance verification and compliance testing.
For low and medium voltage switchgear and electrical panels, including:
- Circuit breakers (CBs)
- Contactors
- Disconnect switches
- Fuses
- Miniature circuit breakers (MCBs)
For low and medium voltage Switchgear:
- Dielectric withstand test
- Impulse withstand test
- Breaking capacity test
- Mechanical life test
- Electrical life test
- Overload performance test

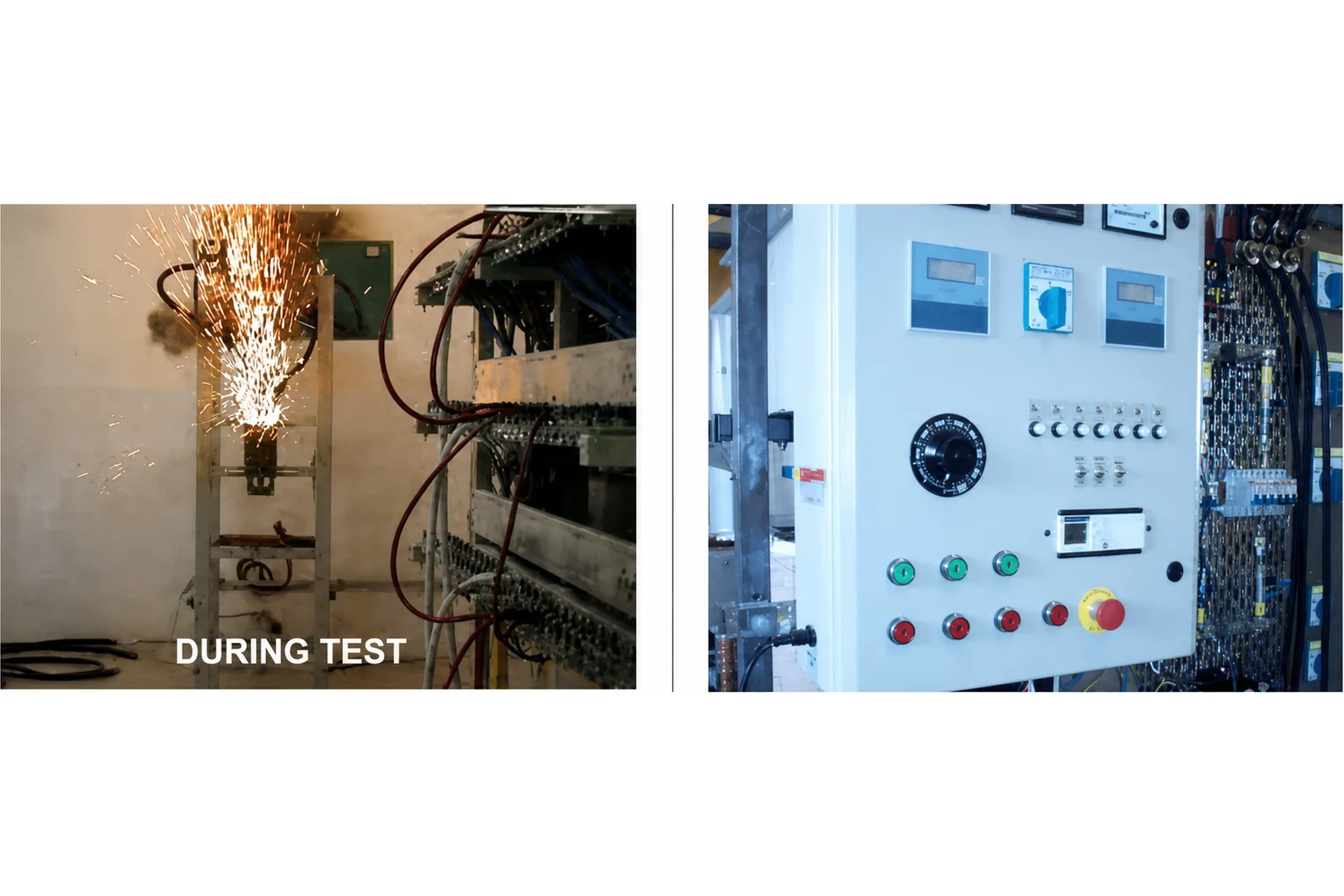

- Short-circuit breaking capacity test
- Short-time withstand current and peak impulse current test
- Temperature rise test
- Operational performance test
For low and medium voltage panels:
- Short-time withstand current and peak impulse current test
- Dielectric withstand test
- Impulse withstand voltage test
- Temperature rise test
