L-Series Inductive Load Banks

Overview

Load banks apply controlled electrical loads to power sources. Resistive elements convert active power into heat, while inductive and capacitive elements exchange reactive power with the source, holding the reactive load at the required level.

Unlike variable field loads, load banks provide predetermined and adjustable loading conditions, enabling reliable testing, commissioning, and performance verification of electrical power systems.

Hilkar L-Series inductive load banks contain controlled inductive loads used to apply reactive power demand to electrical power sources for testing and performance verification.

Available in portable and stationary configurations, L-Series load banks provide load step increments as low as 1 kVAr, enabling precise load control and power factor adjustment for small to large generator systems.

Designed for demanding industrial environments, Hilkar L-Series load banks feature a robust construction suitable for corrosive conditions. They can be operated through local, remote, wireless remote, or automatic control systems.

L-Series load banks are suitable for both workshop and field testing applications and can be supplied as trailer-mounted units for flexible on-site operation.

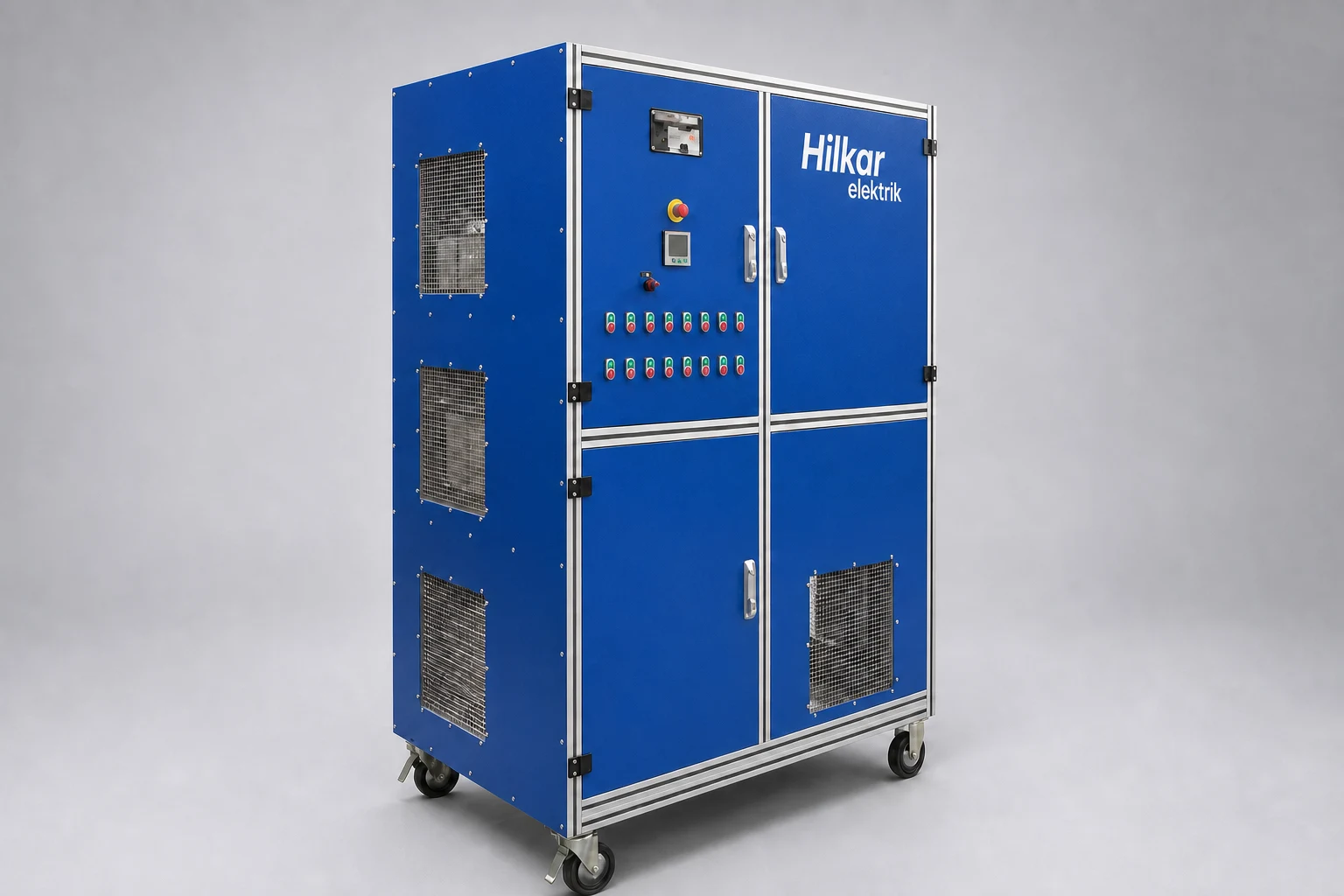

L-Series inductive load bank in a blue cabinet on castors with emergency stop, load step pushbuttons and mesh-covered ventilation openings
  • Robust and durable design
  • Vertical or horizontal air discharge configuration
  • ISO containerized or custom enclosure options
  • Integrated remote control system with data acquisition, monitoring, and load step control
  • Configurable load combinations: R / L / C / RL / RC / RLC
  • Easy integration and synchronization with other load banks
  • Corrosion-resistant coating for outdoor applications
  • High-temperature class reactors on demand
  • Designs compatible with IEC 62116, IEEE Std 929, and UL 1741 standards

Hilkar load banks can be equipped with optional touchscreen LCD displays, wireless remote load step controllers, and PC-based control software for advanced testing and monitoring. The control system provides fan start/stop control, electrical parameter monitoring, load step management, timing functions, data recording, test modes, and fault detection. PC controllers communicate with the load bank via a USB connection.

Load banks include circuit breaker protection and provide easy access to switchgear compartments and reactors. Integrated safety functions protect against fan failure, low airflow, overvoltage, overheating, and phase sequence faults. Suitable for flexible field operation, trailer-mounted L-Series inductive load banks provide reliable solutions for on-site generator testing.

L-Series load bank models and specifications
Auxiliary Voltage400 V, 50–60 Hz (other voltages and frequencies available upon request)
ControlManual control (local and/or remote) or automatic control via DSP controller
PortabilityForklift channels, lifting lugs, and wheels for easy transportation
L-Series load bank models and specifications
ModelLoad Step ResolutionDesigned VoltageCapacity (kVAr)Dimensions (W × L × H) cm / inWeight (kg/lb)
LB.L.1min. 5 kVArup to 690 V 50–60 Hz0–10065 × 125 × 65 / 25.6 × 49.2 × 25.6Variable as per load steps
LB.L.2min. 5 kVArup to 690 V 50–60 Hz or DC100–250100 × 175 × 100 / 39.4 × 68.9 × 39.4Variable as per load steps
LB.L.3min. 5 kVArup to 690 V 50–60 Hz250–500125 × 200 × 125 / 49.2 × 78.7 × 49.2Variable as per load steps
LB.L.4min. 5 kVArup to 690 V 50–60 Hz500–1000200 × 200 × 200 / 78.7 × 78.7 × 78.7Variable as per load steps
LB.L.C10min. 5 kVArup to 690 V 50–60 Hz1000–2500210 × 300 × 220 / 82.7 × 118.1 × 86.6Variable as per load steps
LB.L.C20min. 25 kVArup to 36 kV 50–60 Hz2500–5000Standard 20-foot high-cube container dimensionsVariable as per load steps
LB.L.C40min. 25 kVArup to 36 kV 50–60 Hz5000–15000Standard 40 feet high cube container dimensionsVariable as per load steps

Hilkar load banks can be operated through various control options to meet different testing requirements:

Local Control

Remote Control

Wireless Remote Control

Automatic Control

Generator testing
Ship and marine power system testing
Power plants
Telecommunication sites
Mining facilities
Military installations
Data centers
Battery energy storage systems (BESS)
UPS systems
Inverter testing and commissioning
Frequency

50 / 60 / 400 Hz

Load Type

Inductive

≤ 36 kV

Measurements

V, A, W, VAr, Hz, cosφ

  • Applied Voltage and Frequency (System voltage and operating frequency)
  • Installation Type (Mobile or stationary)
  • Load Step Resolution
  • Service Location (Indoor or outdoor application)
  • Required Reactive Load Capacity (kVAr)
  • Blower and Control Voltage (Auxiliary supply voltage requirements)
  • Control Power Supply (Internal and/or external )
  • Meters (Voltmeter, Ammeter, kW meter, kVA meter, cosφ, frequency meter)
  • Optional Communication Interface RS-232 / RS-485 computer interface (wireless interface available upon request)
  • Automatic Controller Required / not required
  • Wireless Remote Control Required / not required
  • Protection Degree IP20 (indoor), IP20 (outdoor under roof), IP55 (outdoor)
