C-Series Combined Load Banks

Overview

Load banks consist of resistive, inductive, and/or capacitive elements. They apply controlled active and/or reactive loads to electrical power sources.

Unlike highly variable on-site loads, load banks provide predetermined, controllable loads. They use the power source's energy output to test, support, or protect the system.

Hilkar C-Series combined load banks combine resistive and reactive loads to apply controlled active and reactive power demand to electrical power sources for testing and performance verification.

Available in portable and stationary configurations, C-Series load banks provide load step increments as low as 1 kVAr, enabling precise load control and power factor adjustment for small to large generator systems.

Designed for flexible operation, these load banks are suitable for both workshop and on-site testing and can be supplied as trailer-mounted units for easy transportation and field applications.

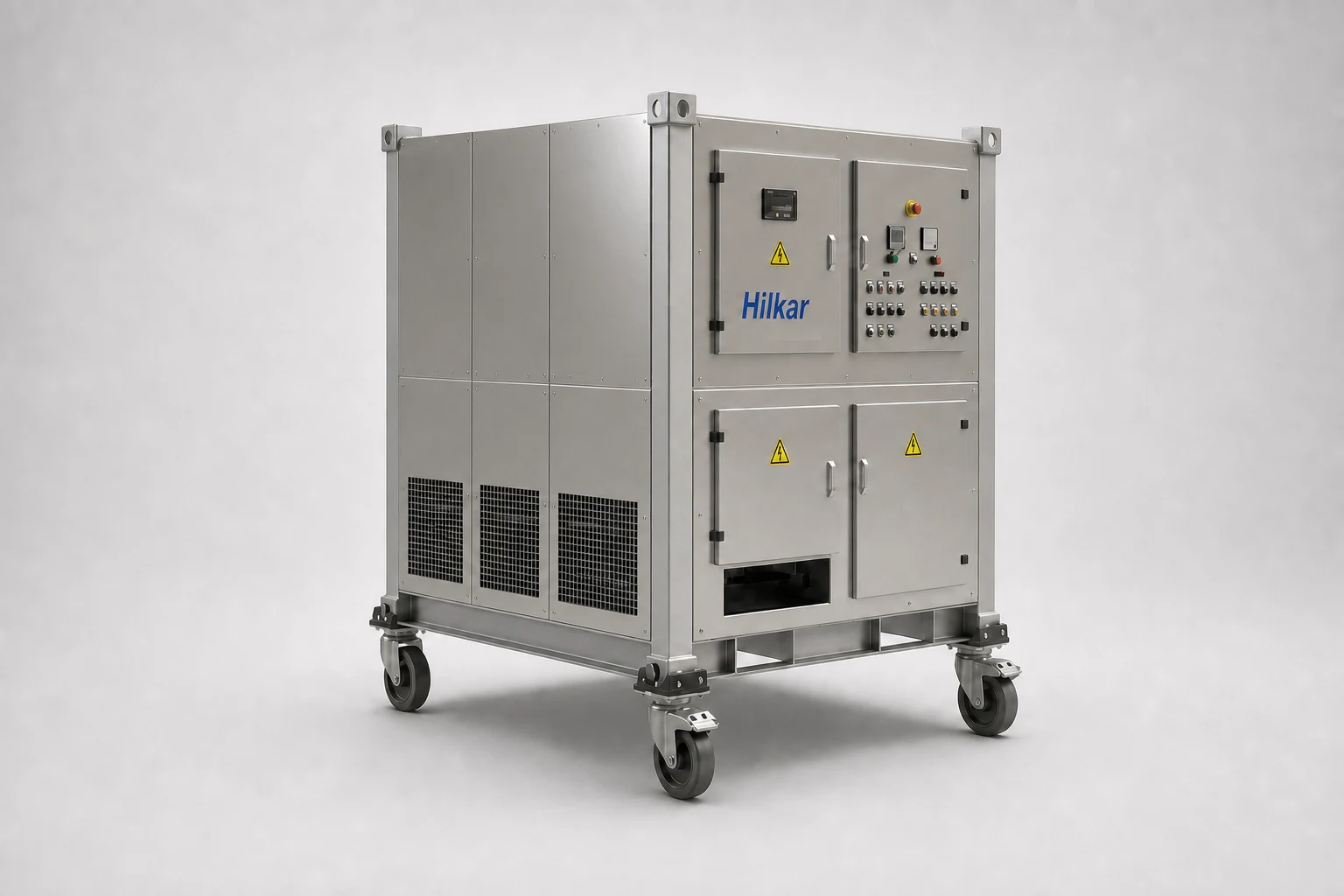

Portable C-Series combined load bank with stainless steel enclosure, control panel, ventilation grilles and castor wheels
  • Robust and durable design
  • Vertical or horizontal air discharge configuration
  • ISO containerized or custom enclosure options
  • Integrated remote control system with data acquisition, monitoring, and load step control
  • Easy integration and synchronization with other load banks
  • Corrosion-resistant coating for outdoor applications
  • High-temperature-class reactors for inductive loads on demand
  • Designs compatible with IEC 62116, IEEE Std 929, and UL 1741 standards
  • Configurable load combinations: R / L / C / RL / RC / RLC

Hilkar load banks can be equipped with optional touchscreen LCD displays, wireless remote load step controllers, and PC-based control software for advanced testing and monitoring. The control system provides fan start/stop control, electrical parameter monitoring, load step management, timing functions, data recording, test modes, and fault detection. PC controllers communicate with the load bank via a USB connection.

Load banks include circuit breaker protection and provide easy access to switchgear compartments and reactors. Integrated safety functions protect against fan failure, low airflow, overvoltage, overheating, and phase sequence faults. Suitable for flexible field operation, trailer-mounted C-Series combined load banks provide reliable solutions for on-site generator testing.

C-Series load bank models and specifications
Auxiliary Voltage400 V, 50–60 Hz (other voltages and frequencies available upon request)
ControlManual control (local and/or remote) or automatic control via DSP controller
PortabilityForklift channels, lifting lugs, and wheels for easy transportation
C-Series load bank models and specifications
ModelLoad Step ResolutionDesigned VoltageCapacity (kVA)Dimensions (W × L × H) cm / inWeight (kg/lb)
LB.C.C10min. 5 kW 5 kVAr (L-C)up to 690 V 50–60 Hz1250210 × 300 × 220 / 82.7 × 118.1 × 86.6Variable as per load steps
LB.C.C20min. 25 kW 25 kVAr (L-C)up to 36 kV 50–60 Hz1000–5000 (@0.4 kV: max. 5000 kW) (@4.16 kV: max. 3000 kW) (@36 kV: max. 1000 kW)Standard 20-foot high-cube container dimensionsVariable as per load steps
LB.C.C40min. 25 kW 25 kVAr (L-C)up to 36 kV 50–60 Hz5000–10000 (@0.4 kV: max. 10000 kW) (@4.16 kV: max. 5000 kW)Standard 40-foot high-cube container dimensionsVariable as per load steps

Hilkar load banks can be operated through various control options to meet different testing requirements:

Local Control

Remote Control

Wireless Remote Control

Automatic Control

Generator testing
Ship testing
Power plants
Telecommunication sites
Mining
Military establishments
Data centers
Battery systems
UPS systems
Inverters
Frequency

DC or 50 / 60 / 400 Hz

Resistive Load Rated Voltage

up to 36 kV 50–60 Hz

Inductive Load Rated Voltage

up to 36 kV 50–60 Hz

Capacitive Load Rated Voltage

up to 36 kV 50–60 Hz

Measurements

V, A, W, VAr, Hz, cosφ

  • Applied Voltage and Frequency (System voltage and operating frequency)
  • Installation Type (Mobile or stationary)
  • Load Step Resolution
  • Service Location (Indoor or outdoor application)
  • Resistive, Inductive, Capacitive
  • Required Load Capacity (kW)
  • Blower and Control Voltage (Auxiliary supply voltage requirements)
  • Control Power Supply (Internal and/or external )
  • Meters (Voltmeter, Ammeter, kW meter, kVA meter, cosφ, frequency meter)
  • Optional Communication Interface RS-232 / RS-485 computer interface (wireless interface available upon request)
  • Automatic Controller Required / not required
  • Wireless Remote Control Required / not required
  • Protection Degree IP20 (indoor), IP20 (outdoor under roof), IP55 (outdoor)
