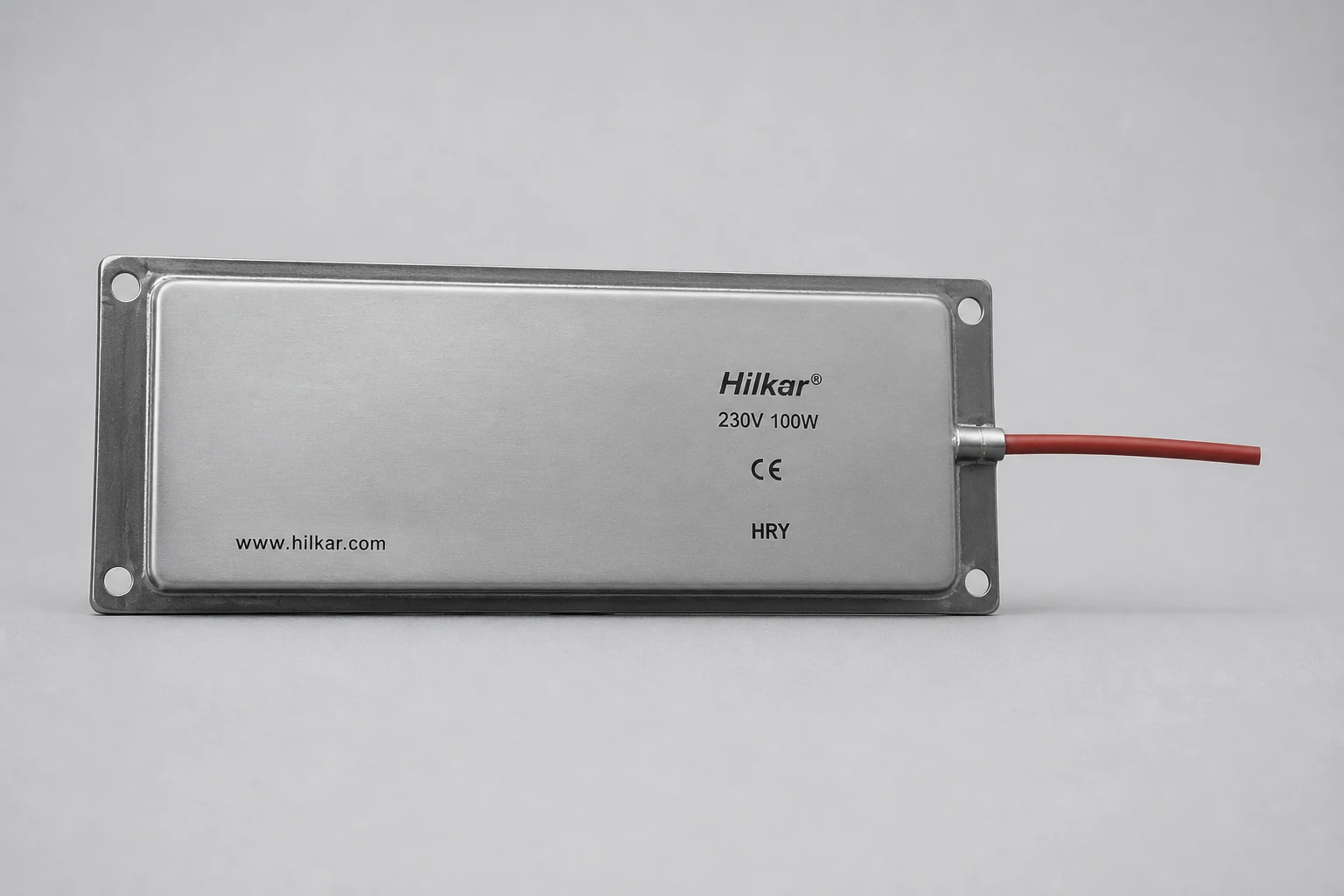

ATEX-certified Explosion-Proof Heaters provide natural convection heating for electrical equipment installed in hazardous areas where explosive atmospheres may be present due to flammable gases, vapors, combustible dust, or combustible metal dust.
In addition to maintaining a stable enclosure temperature, these heaters prevent condensation and moisture accumulation inside electrical enclosures. Moisture, particularly when combined with corrosive gases or dust, can accelerate atmospheric corrosion and reduce the reliability of electrical components such as circuit breakers, busbars, relays, transformers, and electronic assemblies.
Component failures may result from insulation degradation, flashover, creepage currents, or changes in electrical resistance. Maintaining the relative humidity below approximately 60% significantly reduces the risk of condensation and corrosion. By keeping the enclosure temperature approximately 5°C above the ambient dew point, Hilkar Explosion-Proof Heaters provide reliable condensation protection while maintaining safe operation in hazardous environments.
- Control cabinets
- Instrument enclosures
- Electrical junction boxes
- Enclosures for volatile products
- Frost protection
- Condensation prevention
- Motor terminal boxes
- Oil and gas facilities
- Chemical plants
- Oil refineries
- Coal mines
- Pulp and paper mills
- Petrochemical plants
- Grain processing facilities
- Wastewater treatment plants
- Certification
EX II 2G Ex eb II T3 Gb
- Voltage AC/DC
24–277 V
- Power
30 W, 50 W, 100 W *
- Temperature Class
T3
- Heater Body
Stainless steel
- Connection
SIMH 2 × 0.75 mm²
Silicone cable, length 2.5 m
- Mounting
Wall mounting or 35 mm rail clip
- Mounting Position
Vertical or horizontal
- Ambient Temperature
−40 °C … 80 °C
- Protection Degree
IP67
*Consult Hilkar for other ratings.
- Operating Voltage (V AC/DC)
- Required Power Rating (W)
- Mounting Type (Wall Mount or DIN Rail Clip)
- Mounting Position (Vertical or Horizontal)
- Ambient Temperature Range
- Required ATEX Certification / Zone Classification
- Cable Length (if non-standard)
