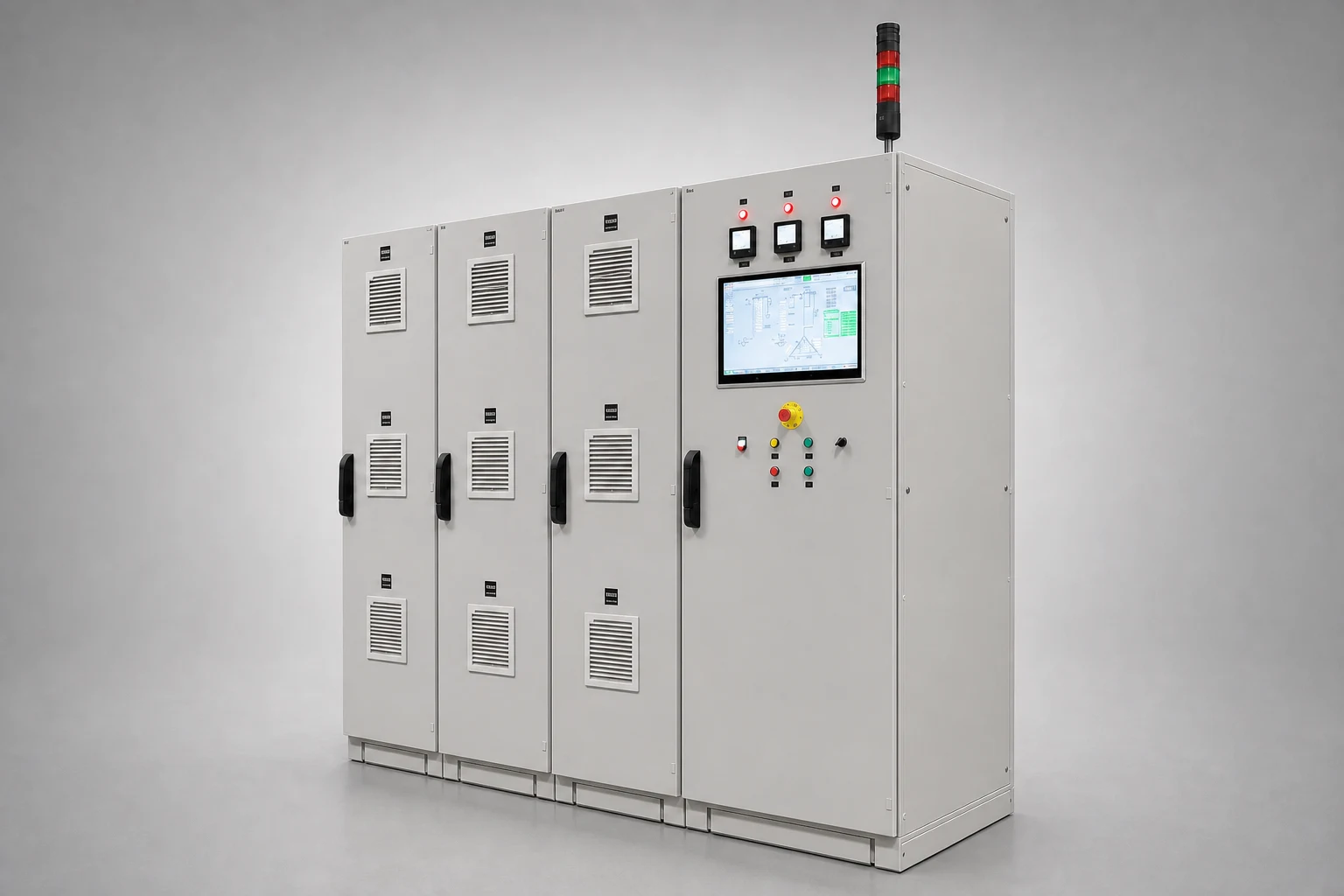

FlexVAr® utilizes Modular Multilevel Converter (MMC) technology with an advanced digital control system and user-friendly HMI. The MMC structure is based on modular H-bridge (HB) submodules equipped with IGBT modules. This modular design enables flexible adjustment of the STATCOM power rating and output voltage by connecting multiple HB units in series for each phase or converter arm, providing a scalable solution for different customer requirements.
- Reactive Power Compensation
- Load Balancing
- Voltage Unbalance Compensation
- Voltage Regulation
- Flicker Mitigation
- Harmonic Filtering
- Utilities and Power Transmission Networks
- Arc Furnaces
- Oil and Gas Industry
- Mining Operations
- Welding Plants
- Rolling Mills
- Panel Arrangement/Small Footprint
- Direct Connection up to 12 kV
- Modular and Flexible Design
- All-in-One Solution
- Air-Forced or Water Cooling
- Delta or Star Configurations
- Low Output Harmonics
- Auto-Reclose Function
- Remote Monitoring and Control
- E-House Option
- Very Fast Response (<1 cycle)
- Rated Voltage
0.4 kV – 12 kV
Direct connection. Transformer connection: 15 kV – 36 kV
- Frequency
50 Hz / 60 Hz
- Rated Reactive Power
0.5 MVAr – 10 MVAr
- Converter Technology
MMC
With Delta or Wye (Star) connection using HV IGBT modules
- Control Modes
- Reactive Power Compensation
- Load Balancing
- Voltage Regulation
- Voltage Unbalance Compensation
- Flicker Mitigation
- Selective Harmonic Elimination
- Response Time
<20ms
- Control System
- DSP/FPGA-based digital control and protection system
- PLC for auxiliary controls
- HMI for system settings and monitoring
- Auto-reclosing function
- Optional remote monitoring and control
- Cooling Type
AF / WF
Air-forced / water-cooling
- Current and Voltage Harmonics
IEEE Std. 519–2014
- Environmental Conditions
- Installation: Indoor installation
- Operating temperature: 0 °C … 40 °C
- Maximum altitude: < 1000 m
- Enclosure (Panels)
IP21
Cable inlet/outlet: Bottom/Bottom. Accessibility: Front/Rear
