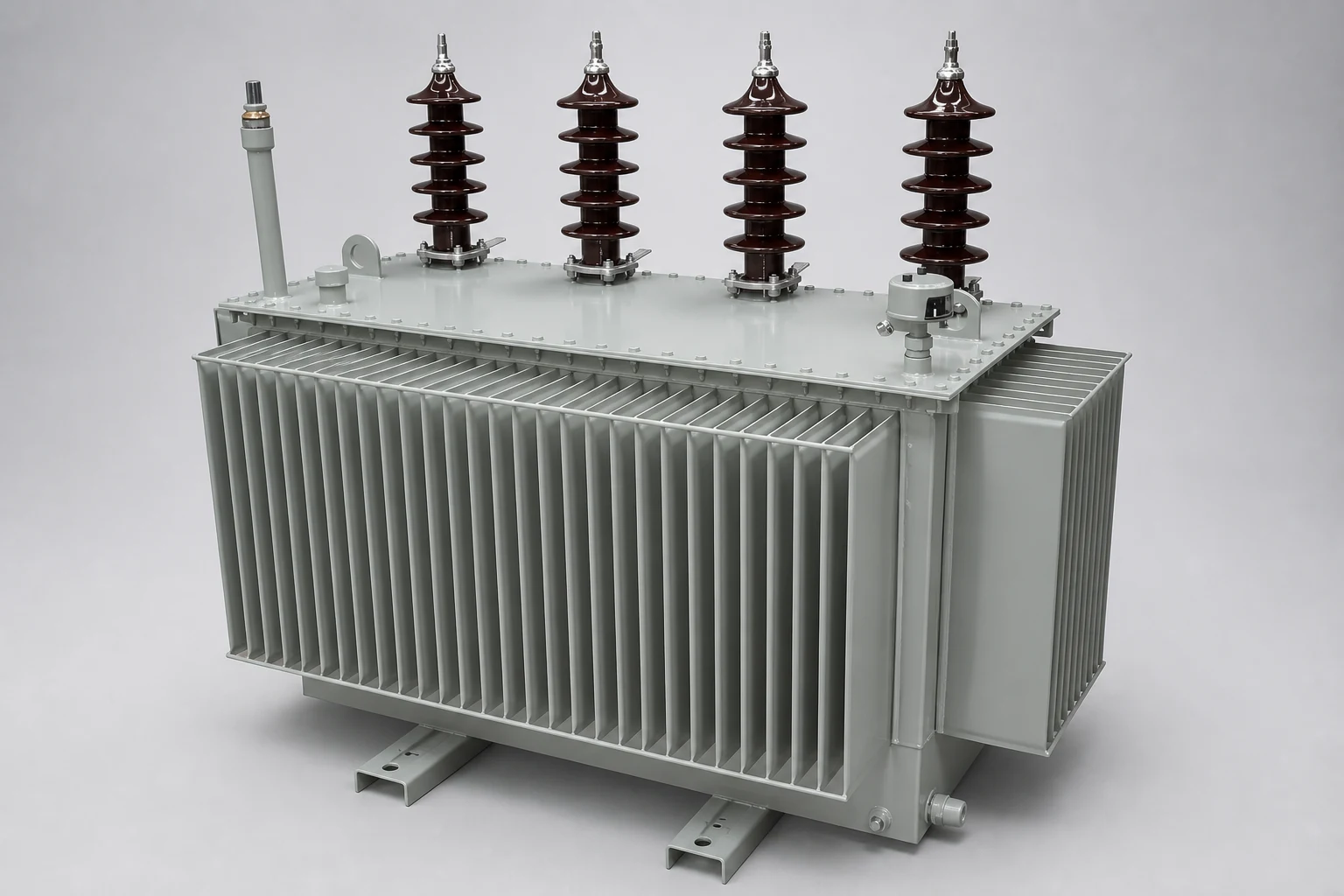

Oil-Immersed Iron Core Shunt Reactors are designed to absorb excess reactive power and improve the voltage stability and energy efficiency of medium and high voltage power systems.
These reactors provide inductive compensation for the capacitive reactive power generated by long transmission lines and underground cable networks, increasing active power transfer capability while preventing overvoltages. They can be connected directly to transmission lines or to the tertiary winding of power and distribution transformers.
The reactor core is manufactured from high-grade ferromagnetic steel with one or more integrated air gaps. This air-gapped core design provides excellent mechanical strength and ensures reliable performance under both normal operating and fault conditions.
For high-voltage and high-power applications, Hilkar recommends integrating RC snubber filters to suppress switching transients and protect switching equipment from excessive overvoltages, improving overall system reliability.
In high-power and high-voltage systems, shunt reactors should be used with RC snubber filters. Because switching transient voltages are extremely high in these systems, they can damage switching devices without proper damping.
- Oil-immersed iron core construction for high efficiency and reliable operation
- Optimized thermal performance with low temperature rise for extended service life
- UV-resistant surface protection suitable for Pollution Class IV environments
- Low losses for improved energy efficiency
- Low noise operation for environmentally sensitive installations

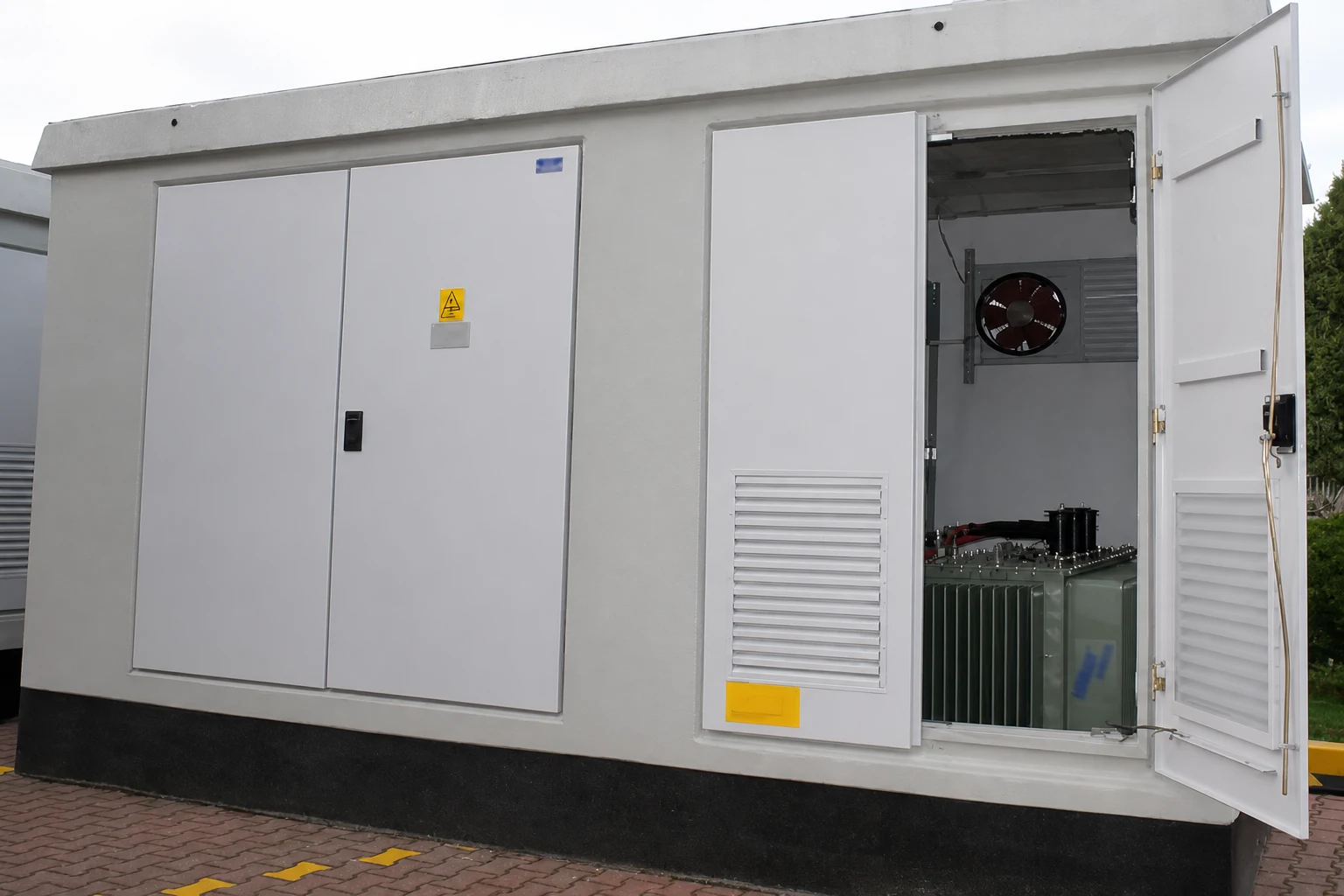

Oil-Immersed Iron Core Shunt Reactors are primarily used for reactive power compensation in long transmission lines, underground cable networks, and lightly loaded power systems, including:
- Wind Farms
- Railway and metro power systems
- Urban distribution networks
- Industrial facilities
- University campuses
- Electrical substations
