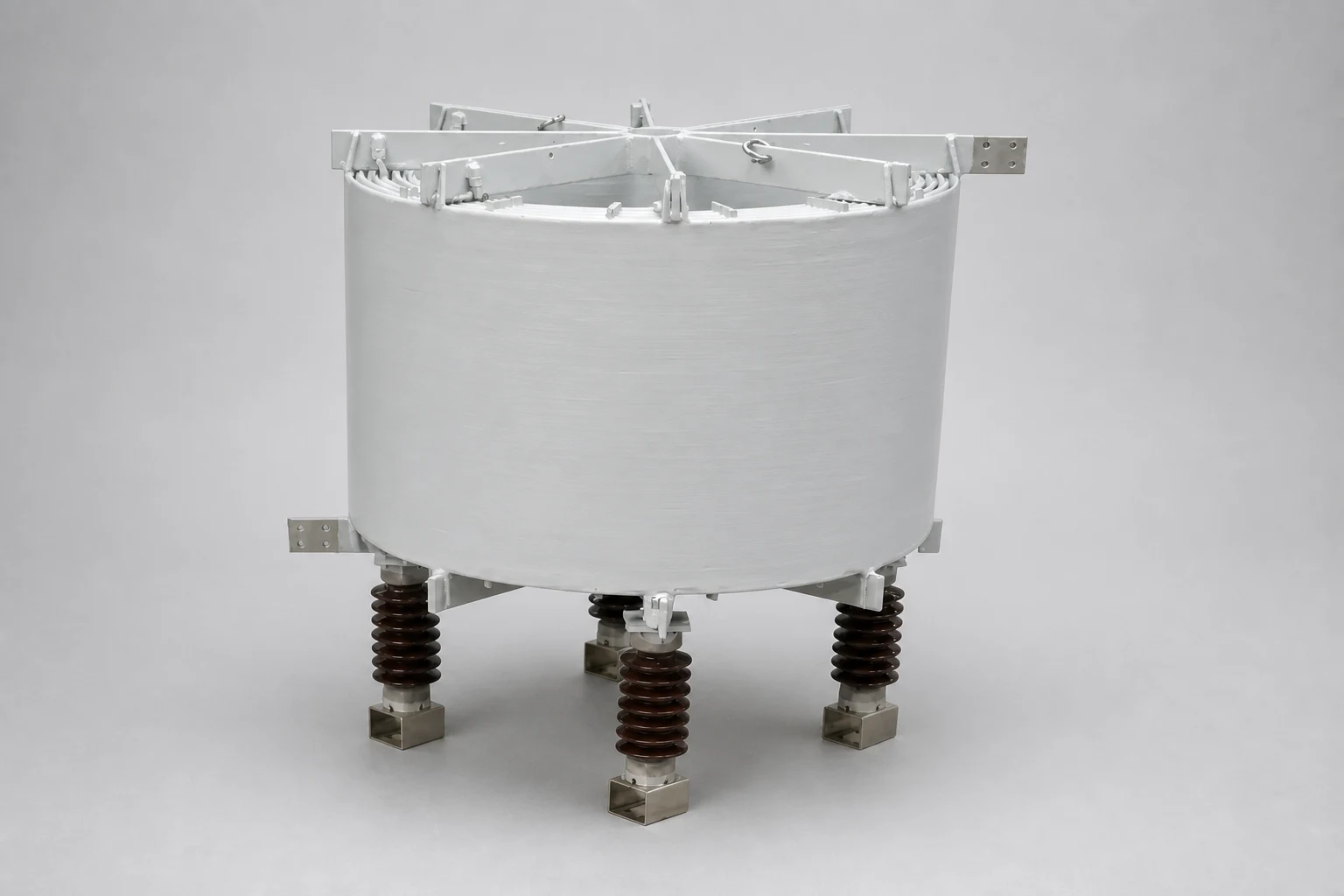

Test Laboratory Reactors are specially designed for high-voltage and high-power testing laboratories, where they operate under severe electrical and thermal conditions.
These reactors are engineered to withstand extreme electrical stresses during short-duration test cycles while providing accurate and reliable performance. Typical applications include current limiting, synthetic circuit breaker testing, capacitor testing, artificial line simulation, and other high-power laboratory testing systems. Their robust construction ensures dependable operation in demanding test environments.

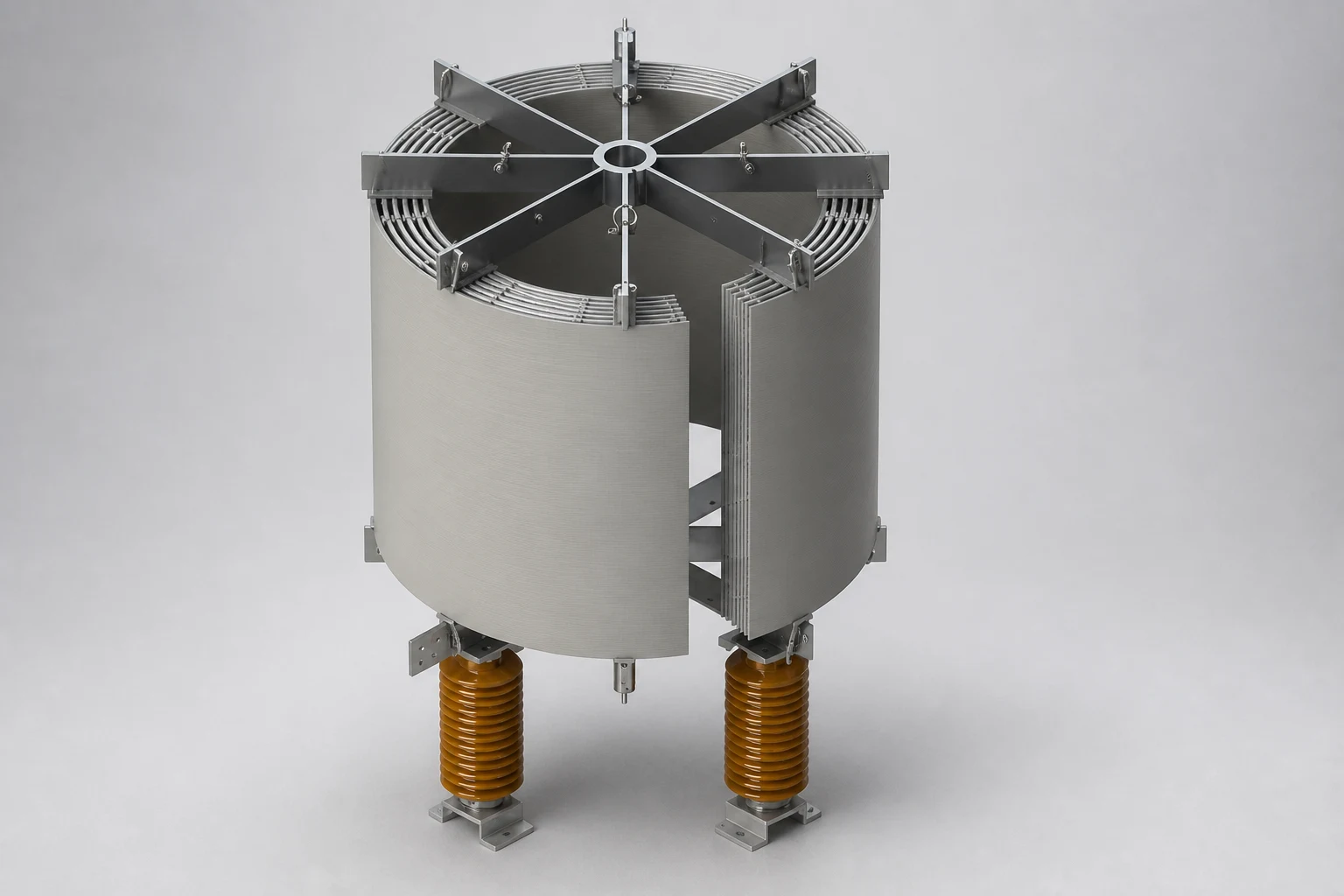

- Air core, dry-type construction
- Optimized thermal design with low temperature rise for extended service life
- Maintenance-free design for reliable long-term operation
- High mechanical strength and short-circuit withstand capability
- Epoxy-impregnated, fiberglass-encapsulated winding for enhanced durability and environmental protection
- Rated Voltage
≤36kV*
- Type
Air core, dry type
- Frequency
50 Hz / 60 Hz
- Installation
Indoor / Outdoor
- Winding Material
Aluminium or copper
- Surface Finish
RAL 7035
Other colors upon request
- Construction
Epoxy-impregnated, fiberglass-encapsulated
- Ambient Temperature
−40 °C … 55 °C
- Insulation Class
Class F
Custom design
- Cooling Method
AN
Air Natural
Options
- Taps
- Enclosure available on request
- Designs to IEEE, IEC, and other standards
- DIN or NEMA terminal configuration
*Consult Hilkar for higher ratings
