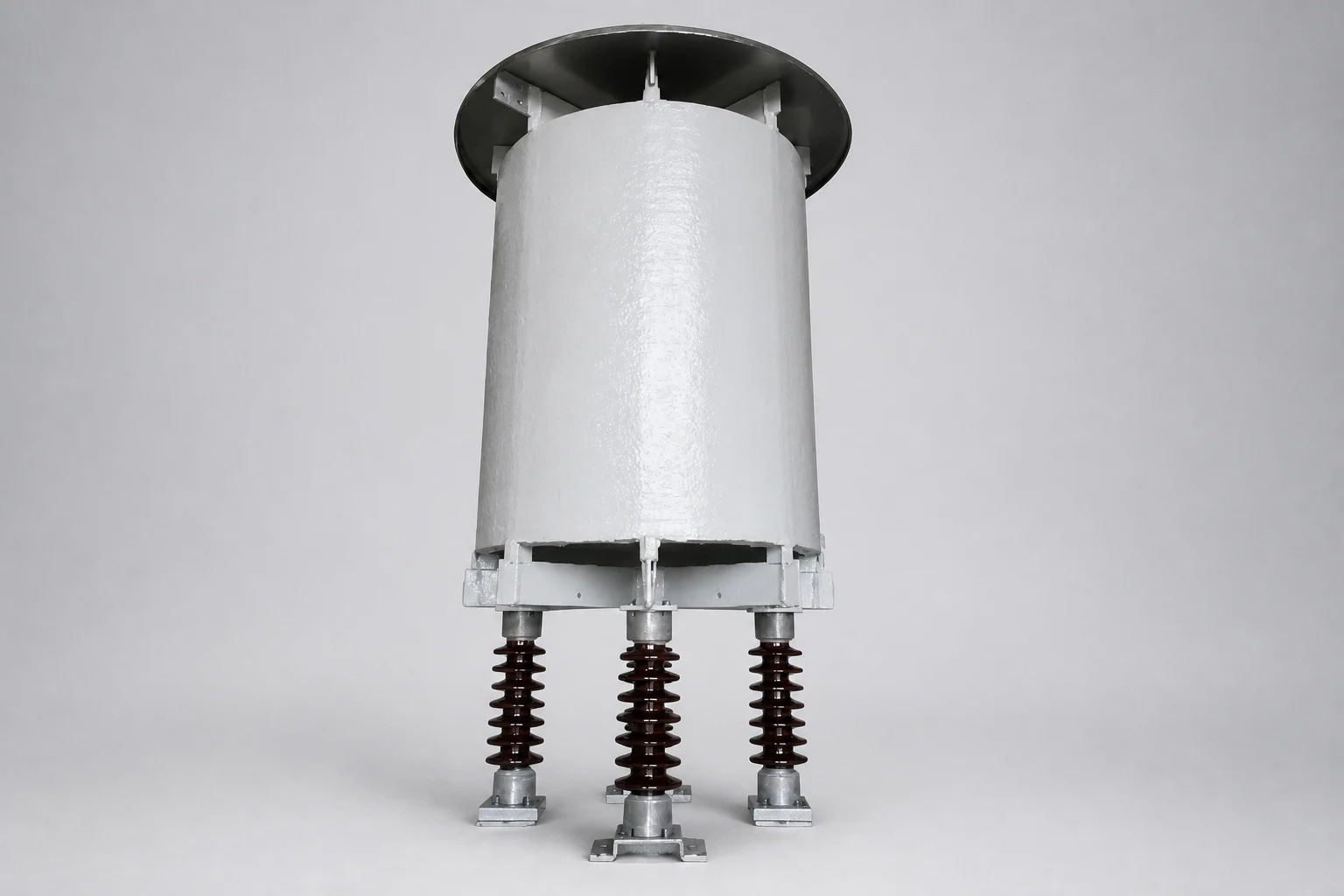

Arc Furnace Reactors are connected in series with the primary winding of arc furnace transformers to stabilize the electric arc and limit current fluctuations and voltage drops during furnace operation. By improving arc stability, these reactors enhance melting efficiency, reduce electrical stress on the power system, and protect transformers and switching equipment. Hilkar Arc Furnace Reactors are manufactured as air core or iron core designs with custom tap configurations to meet specific furnace operating requirements.
- High mechanical strength to withstand severe short-circuit forces
- Optimized thermal design with low temperature rise for extended service life
- UV-resistant surface protection suitable for Pollution Class IV environments
- Maintenance-free design for reliable long-term operation

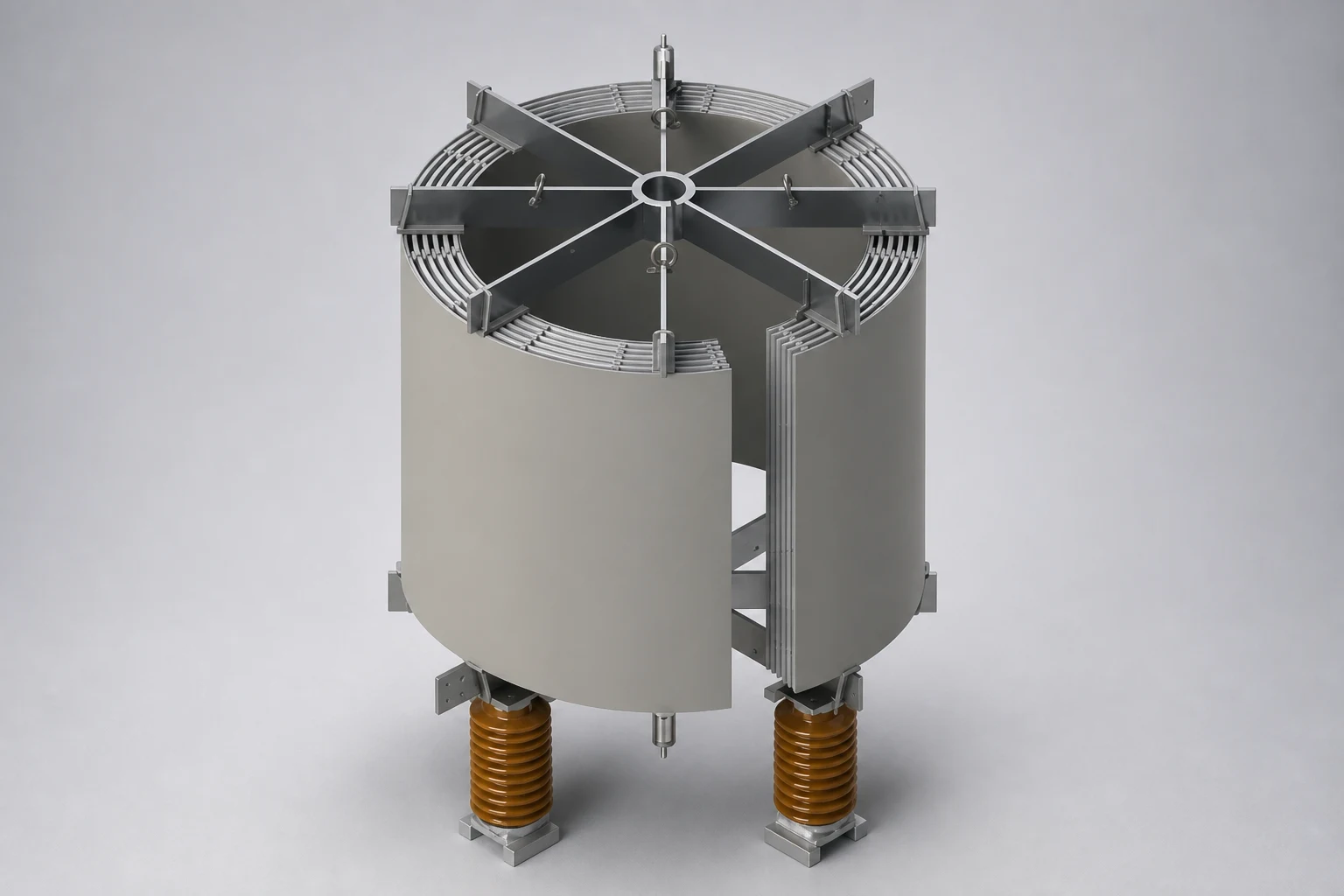

- Epoxy-impregnated, fiberglass-encapsulated construction for superior mechanical strength and environmental durability
- Rated Voltage
≤36kV*
- Reactive Power Rating
≤20MVAr *
- Type
Air core, dry type
- Frequency
50 Hz / 60 Hz
- Installation
Side-by-side, delta, or vertical arrangement
Enclosure available on demand
- Winding Material
Aluminium or copper
- Surface Finish
RAL 7035
Or other colors upon request
- Construction
Epoxy-impregnated, fiberglass-encapsulated
- Ambient Temperature
−40 °C … 55 °C
- Insulation class
Class F or custom
- Applicable Standards
IEC, IEEE, and other applicable international standards
- Cooling Method
AN
Air Natural
Options
- Tap connections for adjustable reactance
- Protective enclosure for indoor or outdoor installation (available upon request)
- DIN or NEMA terminal configurations
*Consult Hilkar for higher ratings
